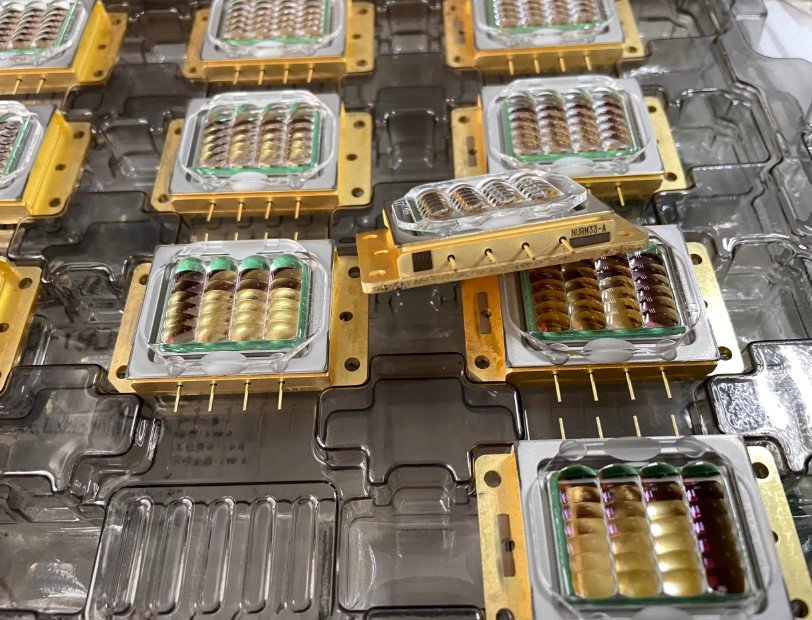

NICHIA NURM33A Laser Diode Array- Product Overview

The NICHIA NURM33A laser diode array is a high-power red laser bank module, delivering 72W output at 639nm & 643nm & 647nm. It features a 7 Series x 4 Parallel configuration with 28 collimated beams for precise optical performance, Such as high-intensity laser projection, engraving, stage lighting, and scientific applications.

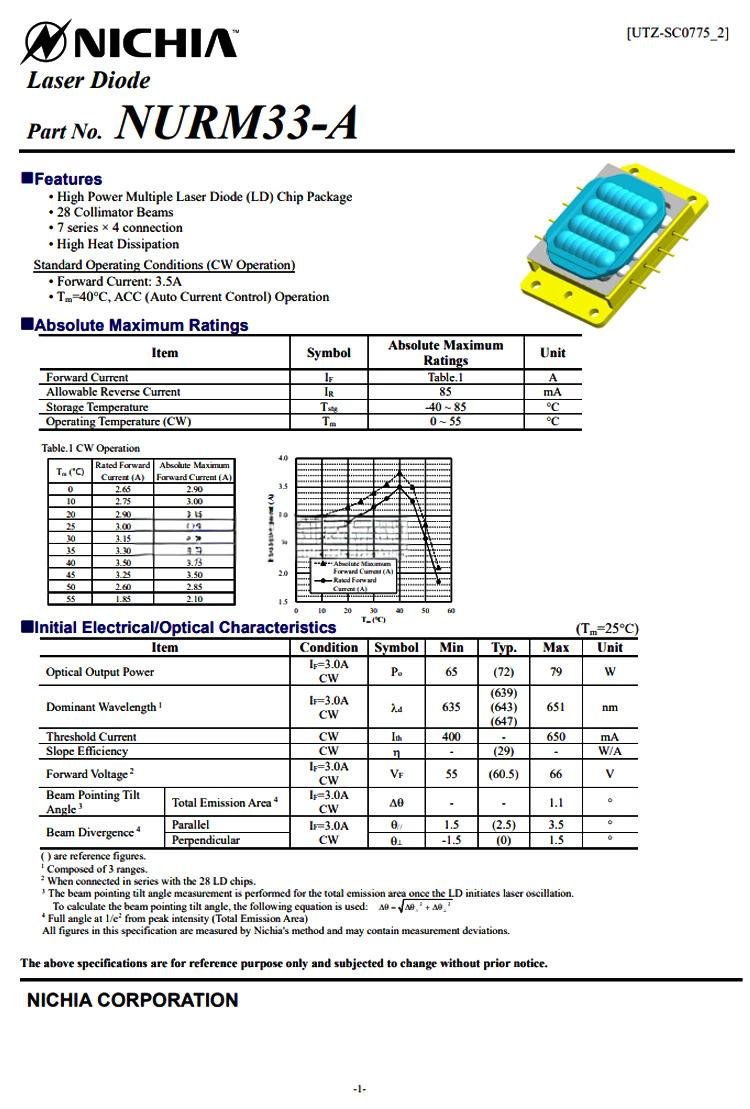

NURM33A Specifications

Product Name	Nichia Red Laser Unit
Model	NURM33A
Beams	28 collimated beams
Configuration	7-series × 4-parallel
Drive Current	< 3.5 A
Storage Temperature	−40 °C to 85 °C
Operating Temperature	0 °C to 55°C
Optical Output Power	72W
Wavelength	639nm, 643nm, 647nm
Voltage	55V to 66V
Lifespan	> 20,000 hours
Origin	Japan

Nichia Laser Diode Applications

Laser projectors & laser TVs
Laser positioning systems
Stage & event lighting
Laser engraving & marking
Automotive fog lamps
Laser landmarks & beam shows
High-power flashlights
Fingerprint forensic analysis
Medical & beauty devices

Optional Driver Circuit

We provide a custom-designed driver for the NURM33A laser diode.
Click here to purchase the compatible driver.

Why Choose NICHIA NURM33A?

Engineered by NICHIA for exceptional optical stability, NURM33A ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both industrial and entertainment applications.

Shipping & Warranty

🚚 Ships within 24–72 hours
🌍 Global tracked delivery (est. 7–14 days)
📦 Shockproof protective packaging
🔁 30-Day Worry-Free Returns
🛡️ Backed by a 180-day warranty
