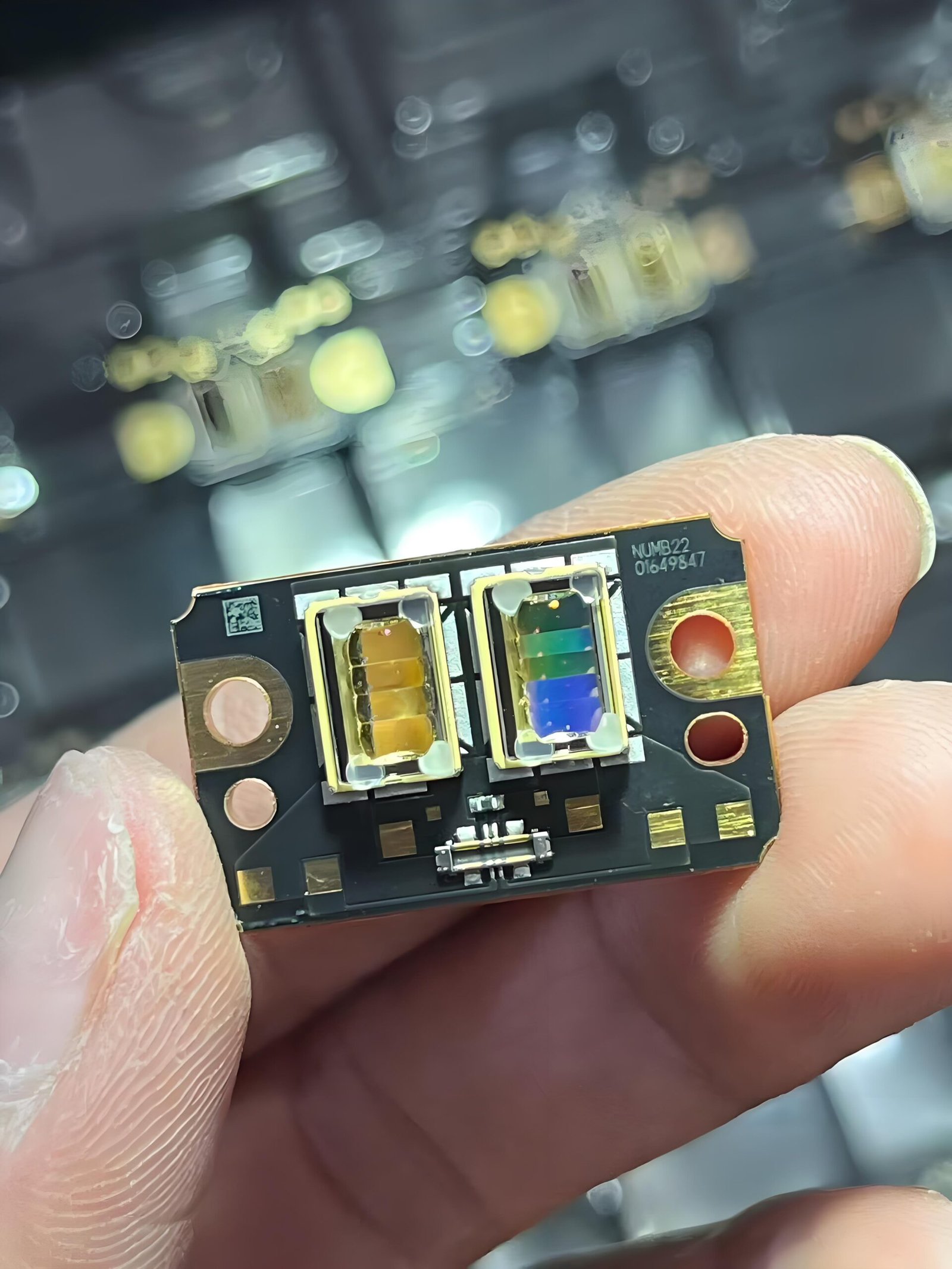

Nichia NUMB22 multiple laser diode array, include R, G, B laser diode

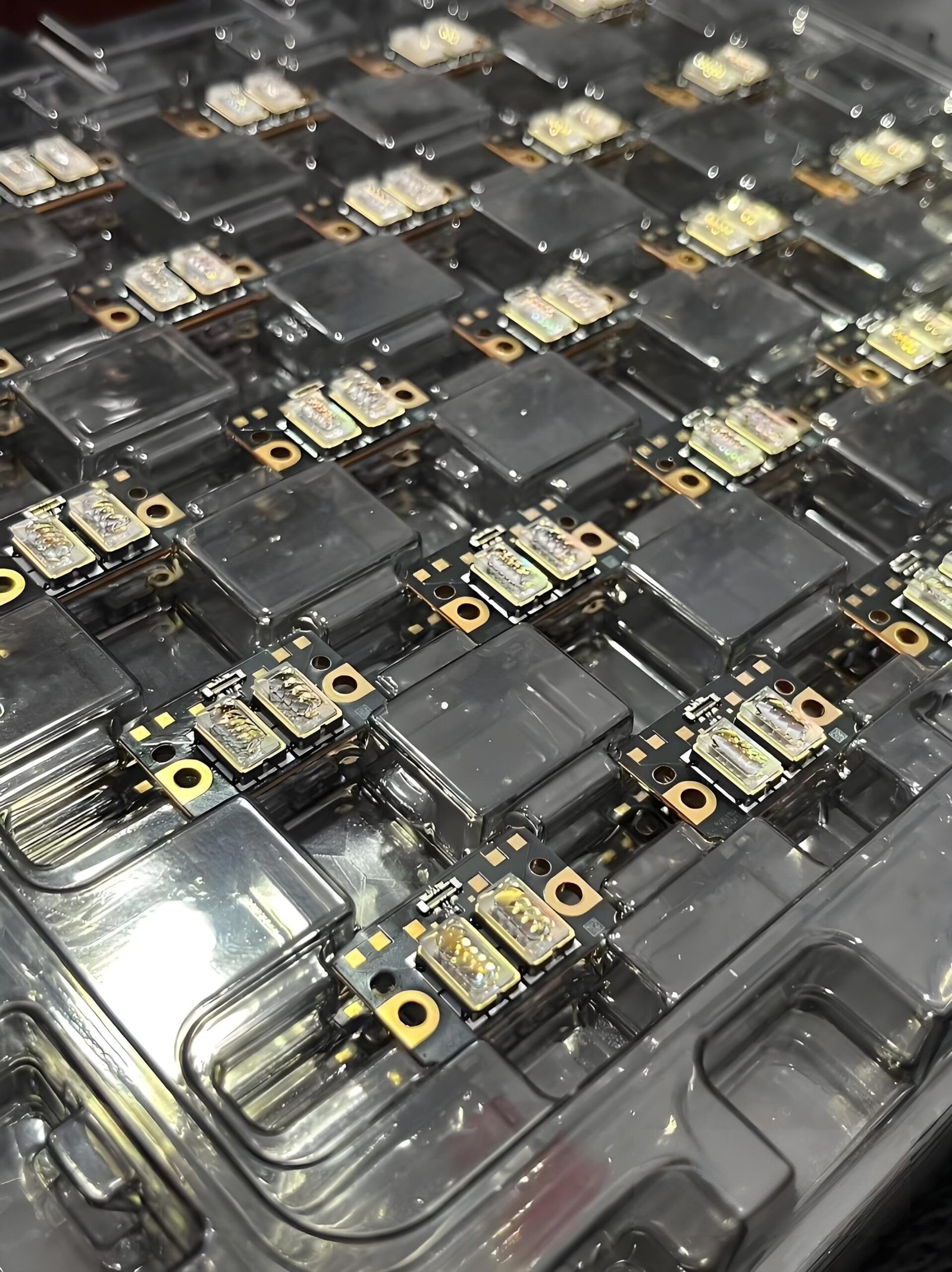

NICHIA NUBM22 multiple Laser Diode Array-stock View

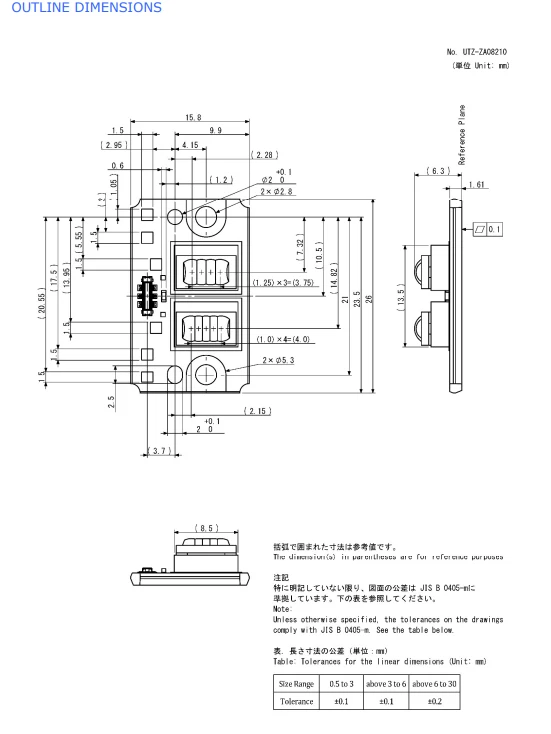

outline dimension of NUMB22 Integrated Module
NICHIA NUMB12 Multiple Laser Diode Datasheet
NICHIA NUMB22 Multiple Laser Diode Module Matrix - Image 5

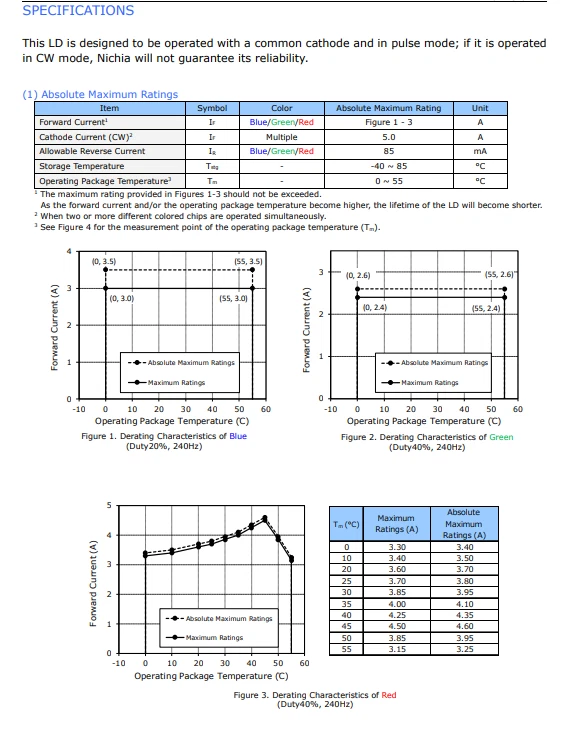

NICHIA NUBM22 Laser Diode Array Datasheet
NICHIA NUMB22 Multiple Laser Diode Module Matrix - Image 7
NICHIA NUMB22 Multiple Laser Diode Module Matrix - Image 8
Laser Units

NICHIA NUMB22 Multiple Laser Diode Module Matrix

Price range: $120.00 through $270.00 & Free Shipping

  • NICHIA NUMB22 multiple laser diode package with 9-chip RGB array. High heat dissipation and pulse operation.
  • Ships fast | Safety packing | 30 days returns | 180 days warranty
  • Welcome bulk order.



Guaranteed Safe Checkout
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
  • Visa Card

NICHIA NUMB22 Multiple Laser Diode Module

The NICHIA NUMB22 is a high-power R,G,B laser matrix,  Blue10.4W; Green 6.4W; Red 11.0W. 9x collimated beams, Special for laser projector and laser tv.

Specifications

Product NameNichia Multiple Laser diode matrix
ModelNUMB22
Beams9 collimated beams
ConfigurationR, G, B multiple laser diode
Drive Current< 5 A (Multiple)
Storage Temperature−40 °C to 85 °C
Operating Temperature0 °C to 55°C
Optical Output PowerB: 10.4W, G: 6.4W, R: 11W,
WavelengthB: 465nm, G: 525nm, R: 639nm,643nm,647nm
VoltageB: 8V, G:13.5V, R: 9V
Lifespan> 20,000 hours
OriginJapan

Applications

  • Laser projectors & Hession laser TVs
  • Laser positioning systems
  • Stage & event lighting
  • Laser engraving & marking
  • Automotive fog lamps
  • Laser landmarks & beam shows
  • High-power flashlights
  • Fingerprint forensic analysis
  • Medical & beauty devices

Optional Driver Circuit

We provide a custom-designed driver for the NUMB22 laser diode.
Click here to purchase the compatible driver.

Why Choose NICHIA NUMB22?

Engineered by NICHIA for exceptional optical stability, NUMB22 ensures reliable performance under demanding conditions. Its robust packaging and precision optics make it suitable for both Laser Projector and TV.
