DJI SDR Transmission Transmitter – Genuine Original

Original price was: $334.00.Current price is: $327.00. & Free Shipping

DJI SDR Transmission Transmitter for professional video applications. Compact, lightweight, and stable. Supports SDI, HDMI, and Wi-Fi with up to 3 km range.

Guaranteed Safe Checkout
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
  • Visa Card

DJI SDR Transmission Transmitter Overviews:

The DJI SDR Transmission Transmitter is a powerful and compact video transmission system designed for professional workflows. With multiple input ports (SDI, HDMI, and USB-C), it ensures smooth and reliable signal transfer.

It supports SDR + Wi-Fi transmission, delivering low latency performance with transmission distances of up to 3 km (FCC). The unit weighs just 145 g, making it lightweight yet durable for field use.

⚠️ Note

  • This listing includes ONLY the SDR Transmission Transmitter.

  • No SDR Transmission Receiver included.

  • Product serial number (S/N) will be recorded before shipping.

In The Box

  • DJI SDR Transmission Transmitter (TX) × 1

  • TX Gimbal Mounting Adapter Plate × 1

Transmitter
WeightApprox. 145 g (including antennas)
Dimensions86.5 × 64 × 32 mm (L×W×H, excluding antennas)
Ports
SDI Input, HDMI Input, 3.5mm Stereo Jack, USB-C Firmware Update Port, USB-C Power & Gimbal Communication Port
Operating Frequency
SDR2.4000–2.4835 GHz / 5.470–5.725 GHz / 5.725–5.850 GHz
Wi-Fi2.4000–2.4835 GHz / 5.150–5.250 GHz
Protocols & Performance
Wi-Fi Protocol802.11b/a/g/n/ac/ax, supports 2×2 MIMO
Max Bandwidth20 MHz (SDR & Wi-Fi)
Max Bitrate20 Mbps (SDR), 8 Mbps (Wi-Fi)
Power Consumption8.2 W
Power Supply
USB-C Power Supply9 V, 2 A (PD protocol) / 6.8–17.2 V DC
Battery SupplyNP-F Battery 6.8–8.4 V
Video
Input Formats1080p, 1080i (except Broadcast), 720p
AudioSDI/HDMI embedded
Video CodingH.264
Latency80 ms (SDR, incl. camera), 35 ms (SDR, excl. camera), 110 ms (Wi-Fi)
Max Distance3 km (FCC), 2 km (CE/SRRC/MIC), 200 m (Wi-Fi)
Other
Operating Temp.-10° to 40° C (14° to 104° F)

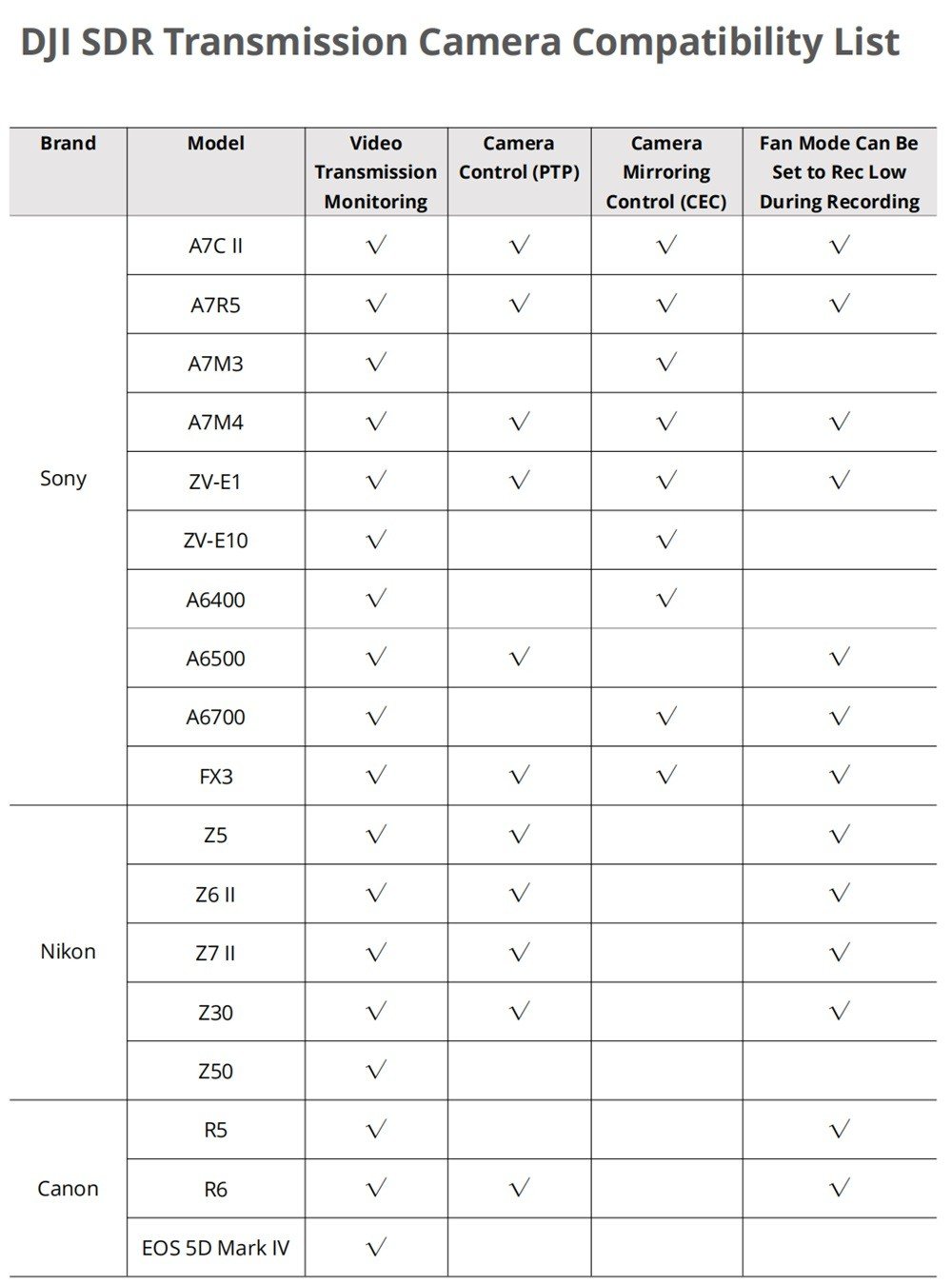

Camera Compatibility

The DJI SDR Transmission supports the following camera models:

Sony

    • A7C II – Video Transmission, Camera Control, CEC
    • A7R5 – Video Transmission, Camera Control, CEC
    • A7M3 – Video Transmission
    • A7M4 – Video Transmission, Camera Control, CEC, Fan Mode
    • ZV-E1 – Video Transmission, CEC, Fan Mode

Nikon

    • Z5 – Video Transmission, Camera Control
    • Z6 II – Video Transmission, Camera Control, CEC
    • Z7 II – Video Transmission, Camera Control, CEC, Fan Mode

Canon

  • EOS R5 – Video Transmission, Fan Mode
  • EOS R6 – Video Transmission, Camera Control, CEC, Fan Mode
  • EOS 5D Mark IV – Video Transmission
