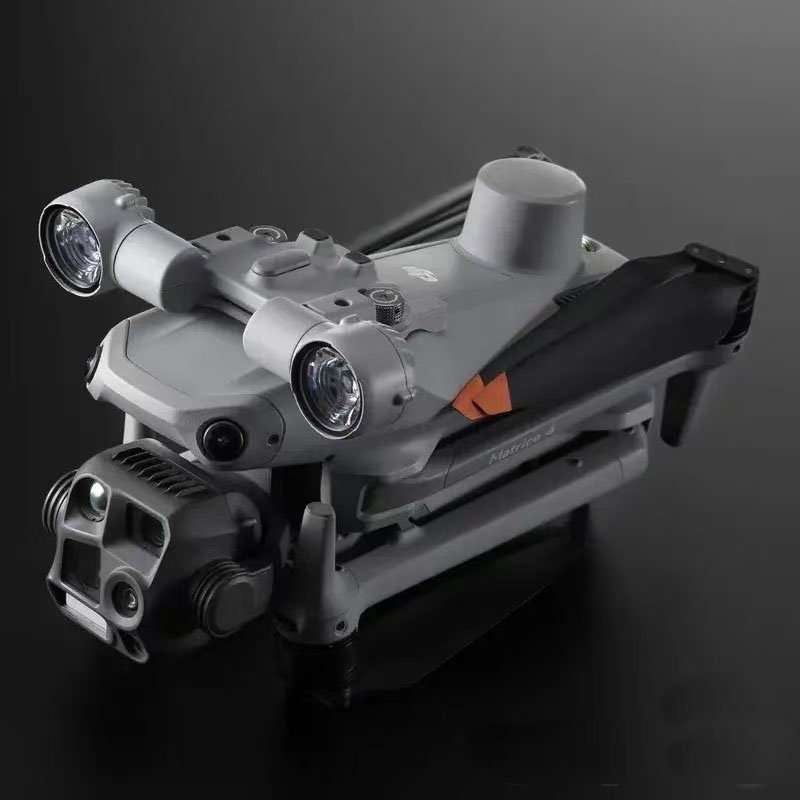

DJI AL1 Spotlight for DJI Matrice 4T/4E Drone

DJI AL1 Spotlight Overview:

The DJI AL1 Spotlight is an essential accessory for DJI Matrice 4T and 4E drones, built to deliver powerful illumination in demanding operations. With its 32W high-brightness beam, it lights up subjects up to 100 meters away, making it ideal for search-and-rescue, night inspection, and public safety missions.

This spotlight supports two modes—always-on and strobe—allowing pilots to adapt to different environments. It also features gimbal linkage, ensuring the light always follows the camera’s movement, so your illuminated field matches your view. For wider coverage, simply switch to wide FOV mode to brighten larger areas.

Installation is simple thanks to its quick-release bracket with hand-tightened screws. Built with DJI standards, the AL1 Spotlight is lightweight yet durable, ensuring reliable performance in critical operations.

Whether you need precision lighting or broad area illumination, the DJI AL1 Spotlight enhances the capability of your Matrice 4 Series drone.

Highlights

• 32W spotlight with 100m effective illumination distance

• Supports always-on and strobe modes

• Gimbal-linked tracking for accurate lighting alignment

• Wide FOV mode for broader area coverage

• Quick-release mounting for easy installation

In The Box

• DJI AL1 Spotlight × 1

• Spare Screw × 2

• Hex Key × 1

Specifications

• Weight: 99 g (with bracket) / 91 g (without bracket)

• Dimensions: 95×164×30 mm (with bracket) / 79×164×28 mm (without bracket)

• Max Power: 32 W

• Illuminance: 4.3±0.2 lux @ 100m; 17±0.2 lux @ 50m

• Effective Illumination Angle: 23° (10% relative illuminance)

• Effective Illumination Area: 1,300 m² @ 100m (Normal Mode) / 2,200 m² @ 100m (Wide FOV Mode)

• Modes: Always-on / Strobe

• Gimbal Tilt Range: -140° to 50° (mechanical) / -90° to 35° (controllable)

• Max Control Speed (Tilt): 120°/s

• Alignment Accuracy: ±0.1°

• Operating Temperature: -20° to 50°C (-4° to 122°F)

• Mounting: Quick-release hand-tightened screws

Compatibility

✅ ONLY work with DJI Matrice 4T and DJI Matrice 4E.
❌ NOT compatible with DJI Matrice 30T/30E, DJI Mavic 3T/3E, or other models.
