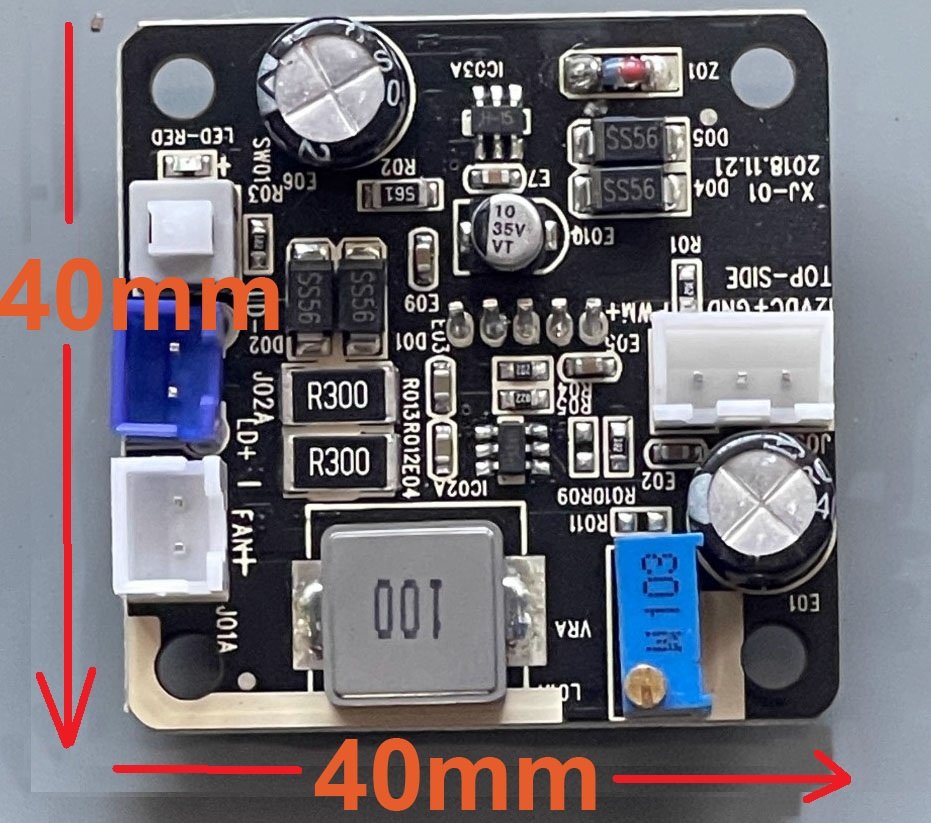

High-Efficiency 12V Laser Diode Driver

High-Efficiency Laser Diode Driver Product Overview

The NUBX-TLG Series Laser Diode Driver is a high-performance constant current driver module designed specifically for solid-state laser diodes (LDs).
Engineered with a BOOST power architecture, it provides high voltage step-up efficiency (up to 96.5%), compact size, and superior power density.
This driver board is an ideal solution for applications requiring stable and reliable laser diode power supplies, including projectors, biomedical devices, and UV curing systems.

Key Features

• High Efficiency: Up to 96.5% power conversion

• Wide Compatibility: Supports 5–8 blue LDs (customizable for more diodes)

• Constant Current Output: Ensures stable laser performance

• Dual Brightness Control: Analog ADJ input (0–1.2V) + PWM digital input (5–20kHz)

• Compact Size & High Power Density for easy system integration

• Multiple Models Available: Adjustable current up to 3.5A

Available Models

Technical Specifications

• Input Voltage: 12V DC (custom input voltages available)

• Input Current: 8A (typical, depends on laser power & efficiency)

• Output Voltage: Supports 5–8 LDs (higher count customizable)

• Output Current: Up to 3A (max; higher current available upon request)

• Efficiency: Maximum 96.5%

• Control Options: Analog (0–1.2V) + PWM digital (0–100%, 5–20kHz)

Pin Definition

Applications

This laser diode driver board is ideal for:

• Mini laser projectors & light engines

• Biomedical laser excitation & sample detection

• UV curing LED & laser light sources

• Automotive laser headlights

• High-power LED lighting (RV, industrial, outdoor)

Safety Notes

1. Apply 3.3–5.5V DC or GPIO high level to the EN pin.

2. Start from ADJ = 0V / PWM = 0%, then gradually increase brightness.

3. Do not reverse polarity or short output — may cause permanent damage.

4. Always wear certified laser safety goggles during operation.

5. Ensure proper cooling: use 40×40mm fan or heatsink with thermal pads.

Warning

⚠️ Professional use only.
The NUBX-TLG laser driver is a high-power laser diode power supply module.
Improper use may result in serious injury or permanent eye damage.
We are not responsible for damages caused by incorrect handling or installation.
